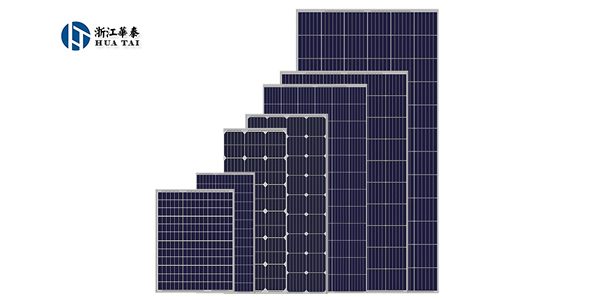

5W-100W Poly Solar Panel
Panel Features:
Standard 5W~100W 18v Solar Panel
18Vdc output for charging the 12V battery
Front tempered glass + TPT backsheet lamination, assembled with aluminum frame
High strength and snow/wind resistance
4~8 frame holes design for easily mounting on the poles or roof
Waterproof, Compressive Strength, and Scratch- Resistant
Upto 12 years warranty and 25 years lifespan
Panel power, color and logo customizable
OEM and ODM available
MECHANICAL& ELECTRICAL CHARACTERISTICS
|
Model
|
Standard Power(W) |
Best Working Voltage(V) |
Best Working Current(A) |
Open-Circult Voltage(V) |
Short-Circult Current(A) |
Dimension(mm) |
Net Weight |
Packing |
|
WP(Watt) |
VMP(V) |
IMP(A) |
VOC(V) |
ISC(A) |
L*W*H |
KGS |
QTY/CTN |
CBM(m3) |
Weight(kgs) |
|
HTP-5 |
5 |
18 |
0.278 |
22.5 |
0.301 |
290*180*18 |
1 |
20 |
0.021 |
23 |
|
HTP-10 |
10 |
18 |
0.556 |
22.5 |
0.601 |
330*290*23 |
1.5 |
10 |
0.025 |
18 |
|
HTP-15 |
15 |
18 |
0.833 |
22.5 |
0.902 |
450*290*25 |
2.4 |
10 |
0.036 |
27 |
|
HTP-20 |
20 |
18 |
1.111 |
22.5 |
1.202 |
450*350*25 |
2.6 |
10 |
0.049 |
29 |
|
HTP-25 |
25 |
18 |
1.389 |
22.5 |
1.503 |
540*350*25 |
2.8 |
10 |
0.052 |
31 |
|
HTP-30 |
30 |
18 |
1.667 |
22.5 |
1.803 |
520*540*30 |
3 |
10 |
0.093 |
33 |
|
HTP-35 |
35 |
18 |
1.944 |
22.5 |
2.104 |
560*540*30 |
3.5 |
5 |
0.048 |
20.5 |
|
HTP-40 |
40 |
17.5 |
2.286 |
22.1 |
2.473 |
620*540*30 |
4.1 |
5 |
0.055 |
23.5 |
|
HTP-45 |
45 |
18 |
2.5 |
22.1 |
2.705 |
620*540*30 |
4.1 |
5 |
0.056 |
23.5 |
|
HTP-50 |
50 |
18 |
2.778 |
22.1 |
3.006 |
700*540*30 |
5.3 |
5 |
0.062 |
29.5 |
|
HTP-60 |
60 |
17.5 |
3.429 |
22.1 |
3.711 |
760*670*30 |
6.1 |
5 |
0.084 |
33.5 |
|
HTP-70 |
70 |
18 |
3.889 |
22.1 |
4.208 |
760*670*30 |
6.1 |
5 |
0.084 |
33.5 |
|
HTP-80 |
80 |
17.5 |
4.571 |
22.1 |
4.946 |
1200*540*35 |
8.5 |
2 |
0.062 |
20 |
|
HTP-90 |
90 |
18 |
5 |
21.6 |
5.410 |
1200*540*35 |
8.5 |
2 |
0.062 |
20 |
|
HTP-100 |
100 |
18.5 |
5.405 |
23 |
5.849 |
1200*540*35 |
10.5 |
2 |
0.062 |
20 |
OPERATING CHARACTERISTICS
|
Maximum System Voltage[V] |
1000/ 1500 DC(IEC) |
Nominal operating cell temperature[℃] |
45+-2 |
|
Maximum Series Fuse Rating[A] |
15 |
Temperature coefficients of Pmax[%/℃] |
-0.42 |
|
Operating Temperature[℃] |
-40 to + 85 |
Temperature coefficients of Voc[%/℃] |
-0.31 |
|
Max load(snow/wind)[Pa] |
5400/2400 |
Temperature coefficients of Isc[%/℃] |
+0.05 |
|
*STC:Irradiance 1000W/m²， module temperature 25℃, AM=1.5 WARRANTY:12-year product warranty;25-year linear power output warranty
|
|
